Question 1

What's the difference between HEPA and MERV filters?

Accepted Answer

HEPA filters remove 99.97% of particles 0.3 microns and larger, making them ideal for cleanrooms, medical facilities, and high-purity manufacturing. MERV (Minimum Efficiency Reporting Value) ranges from 1–20; higher numbers catch smaller particles but restrict airflow. MERV 13–14 suits most industrial applications. HEPA is overkill for general manufacturing but essential for semiconductor, pharmaceutical, or healthcare settings. We match the right filter grade to your air quality requirement and equipment tolerance.

Question 2

How often should we replace industrial air filters?

Accepted Answer

Replacement frequency depends on particulate load and filter type. Typical schedules: MERV 8–11 filters in manufacturing = 2–3 months; MERV 13+ in cleaner environments = 4–6 months; HEPA in critical cleanrooms = 6–12 months or as differential pressure indicates. Running filters past their rated life reduces efficiency and increases equipment strain. We recommend monitoring differential pressure gauges or scheduling quarterly inspections to catch clogging early. Preventive replacement costs far less than emergency downtime.

Question 3

Do we need HEPA filtration for our manufacturing operation?

Accepted Answer

HEPA is required if you manufacture semiconductors, pharmaceuticals, medical devices, or food products demanding less than Class 10,000 cleanroom conditions. Most metalworking and general manufacturing can succeed with MERV 13–14 filters at a fraction of the cost. The right choice depends on your product contamination sensitivity and regulatory requirements. We conduct free assessments to determine your actual need versus over-specification, often saving companies thousands annually in unnecessary filter costs.

Question 4

What's causing our high air filter pressure drops?

Accepted Answer

High pressure drops (indicating clogged filters) result from: inadequate filter area for the volume, wrong filter grade (too fine for the load), missing pre-filters, or infrequent replacement. Metalworking coolant aerosols and casting dust are notorious clogging culprits. We review your CFM requirements, dust load, and filter maintenance schedule to diagnose the root cause—usually a mismatch between filter sizing and dust load. Upsizing filter area or adding pre-filtration often solves the problem permanently.

Question 5

How do we calculate the right filter size for our facility?

Accepted Answer

Start with your total air volume (CFM = cubic feet per minute), then account for dust load (light = office, medium = light manufacturing, heavy = metalworking/casting). Divide CFM by your target velocity (typically 4–6 feet/minute for industrial filters). Larger surface area = longer run times between changeouts = lower total cost-of-ownership. We size systems to balance pressure drop, replacement frequency, and budget. Undersizing causes constant clogging; oversizing wastes capital but saves on labor.

Question 6

What's the right filtration strategy for my process water system?

Accepted Answer

Process water filtration depends on your final application: cooling systems need 5–10 micron protection; manufacturing rinse water needs 1–5 micron; municipal water reuse needs less than 1 micron. Multi-stage filtration (pre-filter to cartridge to membrane) handles varying contaminant types (particles, oil, bacteria, dissolved solids). We assess your source water quality, equipment sensitivity, and regulatory requirements, then design a cascade that prevents downstream damage while minimizing replacement frequency and cost.

Question 7

How do we remove hydraulic oil contamination from process fluids?

Accepted Answer

Separation depends on oil-water compatibility. Immiscible oils (floating on water surface) can be skimmed; miscible oils (dissolved or emulsified) require coalescent filters or activated carbon. Industrial separators combine gravity settling with high-efficiency coalescent cartridges, achieving 99%+ oil removal in a single pass. We identify the contamination source (leaking hydraulic lines, bearing wear, coolant carryover) and design filtration that handles both immediate cleanup and long-term prevention.

Question 8

What micron rating do we need for our industrial cooling tower?

Accepted Answer

Most cooling towers tolerate 25–50 micron filtration without equipment damage. However, if downstream equipment (heat exchangers, spray nozzles) is sensitive, 5–10 micron is safer and extends service life significantly. The trade-off: finer filtration requires more frequent cartridge replacement. We recommend 10–20 micron as a practical middle ground for most facilities, combined with pre-filtration upstream to extend cartridge life and prevent pressure spikes.

Question 9

Our water storage tanks are fouling downstream equipment. What's the solution?

Accepted Answer

Tank fouling (sediment, biological growth, corrosion byproducts) indicates inadequate settling time or tank integrity issues. A 10–25 micron bag or cartridge filter upstream of equipment protects it immediately. For long-term prevention, we recommend tank cleaning, flushing the distribution line, and adding a permanent 5–10 micron polishing filter with bypass protection to prevent pressure spikes during startup. Biological growth requires periodic biocide treatment or UV sterilization upstream of the filtration stage.

Question 10

Can we recirculate process water to reduce operating costs?

Accepted Answer

Yes, if your application permits recirculation. Industrial process reuse is typically allowed if recycled water meets your process quality standard. Multi-stage treatment (coarse to fine to possibly UV or membrane) can achieve 95%+ clarity. We design closed-loop recirculation systems that reduce water consumption and operating costs while meeting compliance requirements.

Question 11

What dust collection system do I need for my manufacturing operation?

Accepted Answer

It depends on your dust type, volume, facility size, and regulatory requirements. Light particulate (paper, plastic) suits cartridge collectors; heavy loads (grinding, welding, metal shaping) need industrial baghouse or cartridge systems with higher air volume. OSHA requires 99% capture at the emission point for hazardous dusts (silica, lead, etc.). We assess your actual dust load (CFM and loading rate in grains/cubic foot), specify the right filter area, and ensure compliance with local air quality regulations and worker safety standards.

Question 12

How often should we change dust collector cartridges?

Accepted Answer

Manufacturer specs suggest replacement at 3–5 inch differential pressure (DP). In practice, changing at 5–6 DP maximizes cartridge life without restricting airflow excessively. Heavy-load facilities (grinding, sanding) may change monthly; light-load facilities may stretch to 3–4 months. We install DP gauges and recommend a replacement schedule based on your actual dust load. Many customers save money by monitoring DP instead of guessing, often extending cartridge life 20–30% beyond the first-time change interval.

Question 13

Is our dust collector sized correctly?

Accepted Answer

Under-sized dust collectors cause back-pressure, reduced machine performance, and carryover of fine dust into the facility air. Over-sized collectors waste electricity but are harmless. The right size balances CFM (total air volume captured), DP (pressure across filter), and filter area (surface area). We measure your actual dust load, calculate required CFM, then verify the collector matches. Many facilities discover they're under-sized; upsizing the filter cartridge area or upgrading the fan often pays for itself in reduced downtime and cleanup time within 6 months.

Question 14

What dust is hazardous under OSHA and how do we capture it?

Accepted Answer

OSHA requires less than 0.025 mg/m³ for crystalline silica (grinding, sandblasting, stone cutting), less than 0.015 mg/m³ for lead (shooting ranges, welding old painted metal), and less than 0.05 mg/m³ for most metalworking dusts. Hazardous dust collection requires sealed enclosures, negative-pressure capture, and 99%+ filtration downstream. We design closed-loop systems with local exhaust ventilation (capturing at the emission source) and high-efficiency cartridge filters to achieve OSHA compliance. Failure costs: $10,000+ in fines per violation, plus potential worker health claims.

Question 15

Our dust collector keeps clogging. Why?

Accepted Answer

Clogs result from: filter grade too fine for the dust type, inadequate filter area for the volume, moisture-laden air (causing dust cake adhesion), or mechanical damage to cartridges. Sticky dusts (wood, epoxy) cake easily; dry metal dusts flow cleanly. Pre-filters (removing coarse particles before the main cartridge) extend life 50%+. We diagnose the root cause—usually a mismatch between filter sizing and dust load—and recommend solutions: upsizing cartridge area, adding pre-filters, or upgrading to a pleated cartridge with better dirt-holding capacity.

Question 16

What's the best way to control odors in my facility?

Accepted Answer

Odor control depends on the source: cooking odors respond to baghouse plus activated carbon; chemical solvents need high-efficiency cartridge plus activated carbon; biological odors (rendering, composting) need carbon plus alkaline scrubbing. Single-stage filtration rarely eliminates odor; multi-stage (dust capture to carbon adsorption to possibly scrubbing) is standard. We identify the odor source, test its composition, then specify the carbon type, airflow, and dwell time required. Most facilities achieve 95%+ odor reduction within budget constraints.

Question 17

How do we choose the right activated carbon for our application?

Accepted Answer

Activated carbon type depends on odor composition: Granular Activated Carbon (GAC) is cost-effective for solvents and general odors; Impregnated Carbon (treated with potassium iodide or similar) excels at acidic odors (sulfur compounds, ammonia); Coconut shell carbon suits food and beverage odor. Too little carbon = breakthrough odor; too much = waste. Dwell time (air contact time in the carbon bed) is equally important: 0.5–1 second works for light loads, 2–5 seconds for heavy. We calculate the right carbon volume and refresh schedule to prevent odor breakthrough.

Question 18

What's VOC filtration and do we need it?

Accepted Answer

VOC (Volatile Organic Compound) emissions occur during solvent use, painting, adhesive application, and chemical processing. Local air quality regulations often set VOC emission limits. Activated carbon captures some VOCs; for complete control, carbon plus catalytic oxidation or UV treatment may be required. If your facility generates regulated VOC emissions (printing, aerospace, pharmaceuticals), emissions testing is required to show compliance. We assess your VOC emissions, recommend the appropriate technology, and help navigate permitting.

Question 19

Our gun range has lead dust and fumes. What filtration is required?

Accepted Answer

Indoor gun ranges require sealed air capture with local exhaust ventilation at the firing line, pre-filtration to catch lead particles, HEPA filtration to stop ultra-fine lead dust (less than 1 micron), and activated carbon for any combustion fumes. Lead is a neurotoxin; OSHA limits exposure to 0.050 mg/m³ per 29 CFR 1910.1025. Complete lead containment prevents air contamination, cleanup costs, and worker health claims. We install closed-loop systems achieving 99%+ lead capture, with regular maintenance and cartridge disposal following EPA lead waste protocols.

Question 20

What's causing fume carryover in our paint booth?

Accepted Answer

Paint booth fumes (solvents, overspray) escape when: filter area is too small, air velocity is too high (greater than 100 CFM/sq ft causes carryover), or filter efficiency is inadequate for fine paint mist. Upgrading to a deeper pleated cartridge increases surface area; reducing airflow velocity improves capture. Multi-stage filtration (pre-filter plus main cartridge plus possibly secondary stage) handles peak demand without breakthrough. We review your booth design, airflow, and filter specifications, then recommend upgrades that improve spray quality and air quality simultaneously.

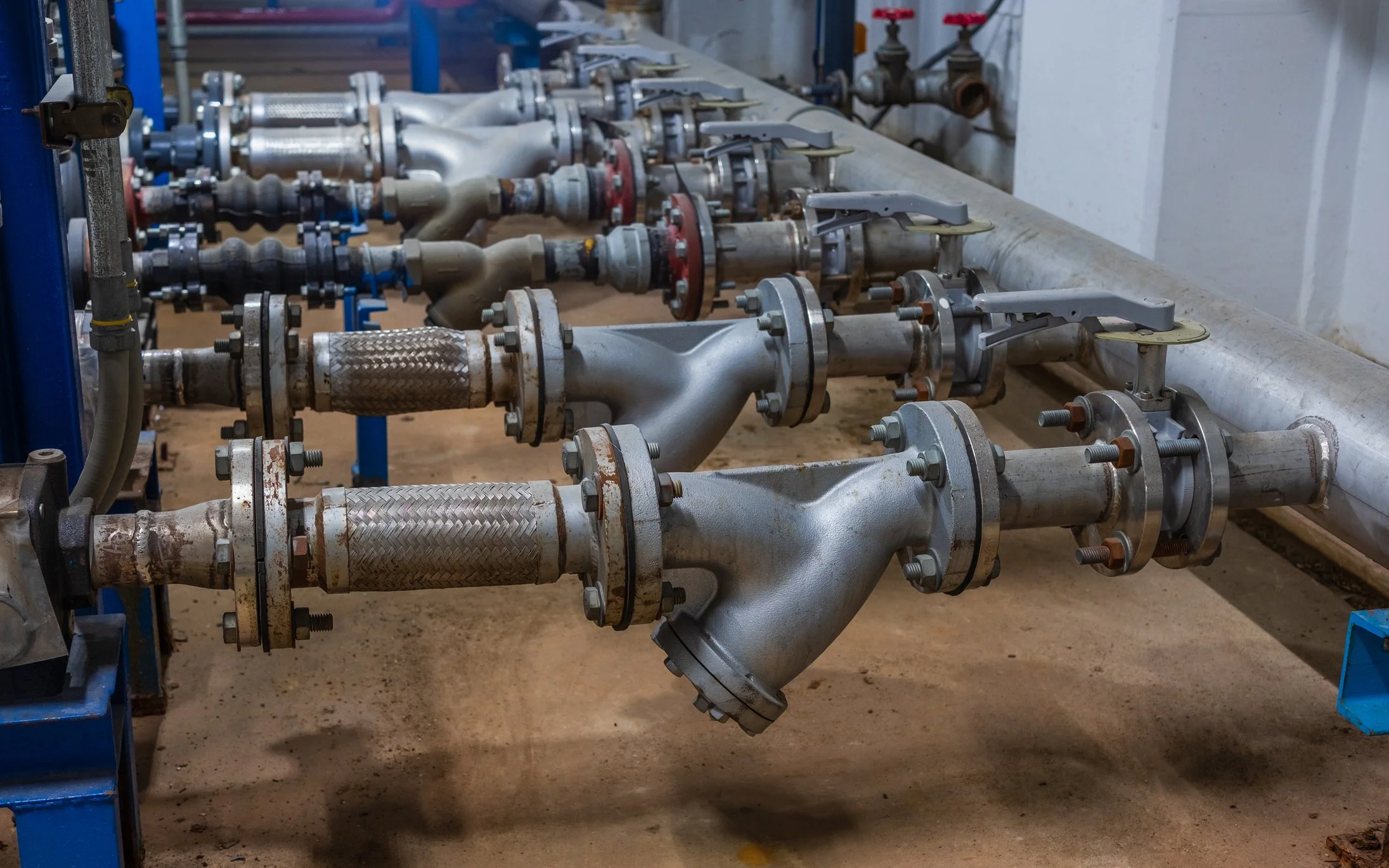

Question 21

What are Y-type strainers and when do I need them?

Accepted Answer

Y-type strainers protect pumps, meters, and downstream equipment by removing large particles (typically 50–150 micron) before they cause damage. Installed upstream of sensitive equipment, they catch debris in the pipeline, reduce wear, and extend equipment life 2–5 years. They require periodic cleaning (when differential pressure reaches approximately 3 PSI). Y-strainers are low-cost insurance—typically $200–$500—that prevents $10,000+ pump failures. We recommend them in any process loop where debris risk is present: new construction, retrofit, or after any pipeline disturbance.

Question 22

How often should we clean our Y-type strainer?

Accepted Answer

Clean when differential pressure reaches 3–5 PSI or if flow restrictions become apparent. In new or contaminated systems, this might be weekly; in established systems, monthly or quarterly. Preventive cleaning extends equipment life and prevents pressure spikes that can shock sensitive downstream instruments. We install pressure gauges upstream and downstream of strainers so cleaning schedules are data-driven, not guessed. An automated alert (when DP exceeds setpoint) triggers maintenance before problems occur.

Question 23

What's the difference between Y-type and basket strainers?

Accepted Answer

Y-type strainers are space-saving, low-cost, and easy to clean (remove the cartridge, rinse, reinstall). Basket strainers handle larger volumes and debris loads, making them ideal for main process lines or high-flow applications. Y-strainers suit branch lines and equipment protection; basket strainers suit trunk lines and high-flow scenarios. Pressure rating and port size requirements determine the right choice. For most industrial applications, Y-strainers provide adequate protection at minimal cost; basket strainers are chosen when volume or load justifies the investment.

Question 24

Our hydraulic system keeps failing. Could straining help?

Accepted Answer

Hydraulic systems are sensitive to particle contamination: less than 10 micron cleanliness (ISO code 18/16/13) prevents pump and valve failure. Even new hydraulic fluid contains particles; dirty tank conditions add more. Upstream Y-strainers (50 micron) catch gross debris; downstream return-line filters (3–10 micron) maintain cleanliness during operation. Many hydraulic failures result from under-filtration, not under-sizing. We audit your system's contamination control strategy and often recommend a return-line filter upgrade, reducing failures and extending fluid service life 2–3x.

Question 25

Do we need a strainer before our water meter?

Accepted Answer

Yes, especially in municipal water systems where sediment and corrosion byproducts are common. A 100–150 micron Y-strainer upstream of a meter prevents sediment accumulation inside the meter, which causes sticking, inaccuracy, or failure. Meter sticking leads to over-billing and poor flow data; meter damage costs $500–$2,000 to replace. A $300 strainer cleaned annually prevents all of this. We recommend strainers before any meter, instrument, or sensitive equipment to protect against pipeline sediment and corrosion debris.

Industrial & Commercial Filtration Solutions

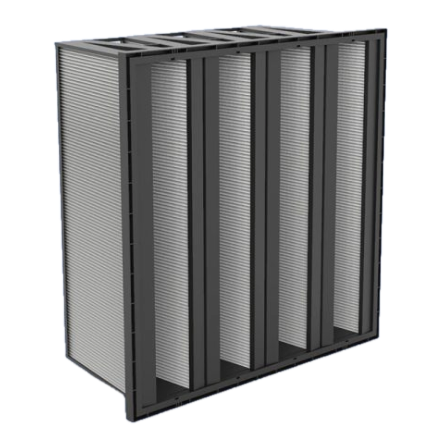

Air Filtration

Commercial & Industrial Air Filtration Systems

Common Filters We Provide For Air Processes

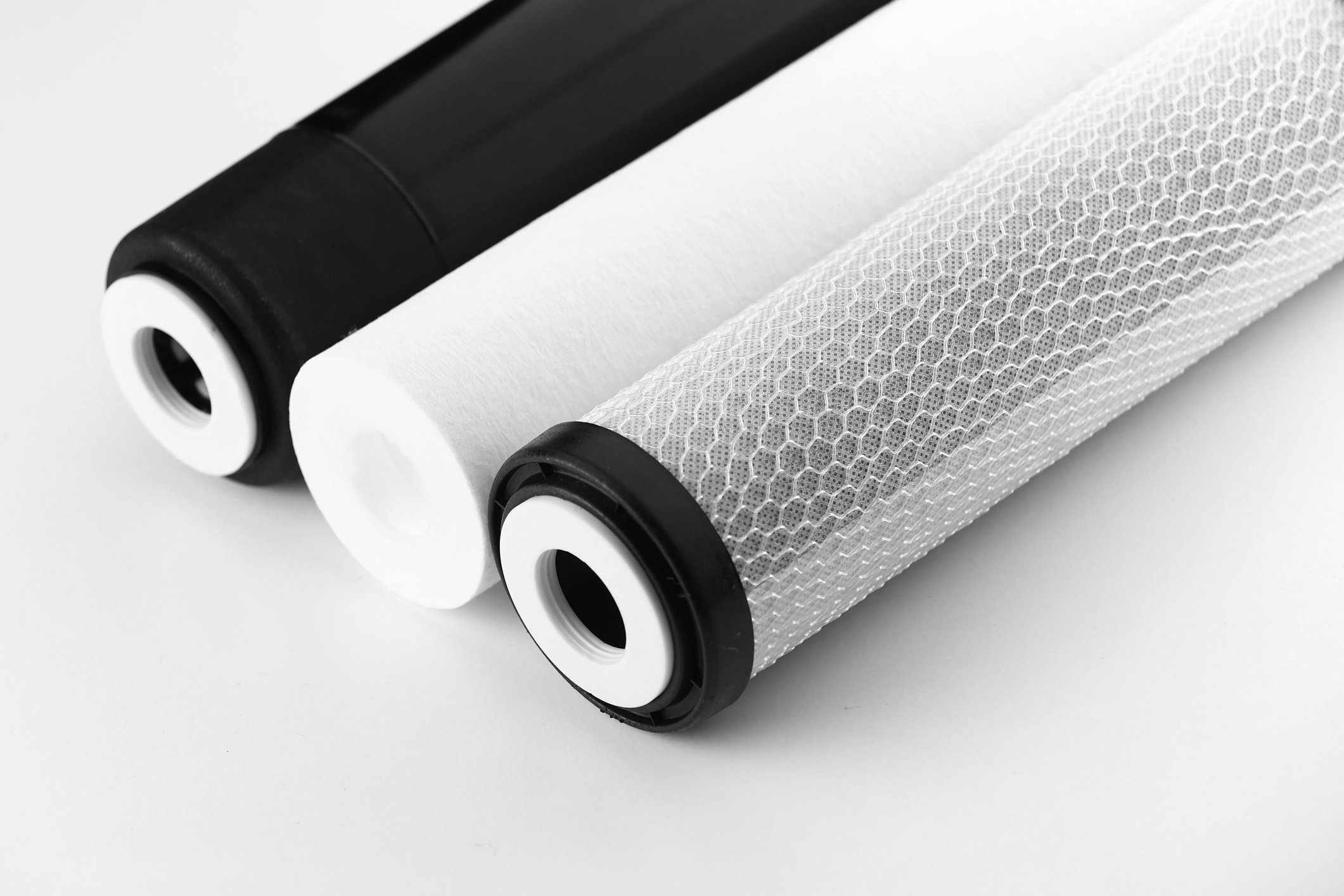

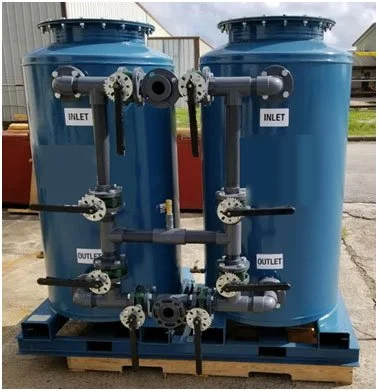

Liquid Filtration

Industrial Liquid & Process Fluid Filtration Systems

Quality Products For Liquid Filtration

Odor & Fume Control

Industrial Odor Control & Chemical Fume Filtration Solutions

Odor and Fume Filtration Items

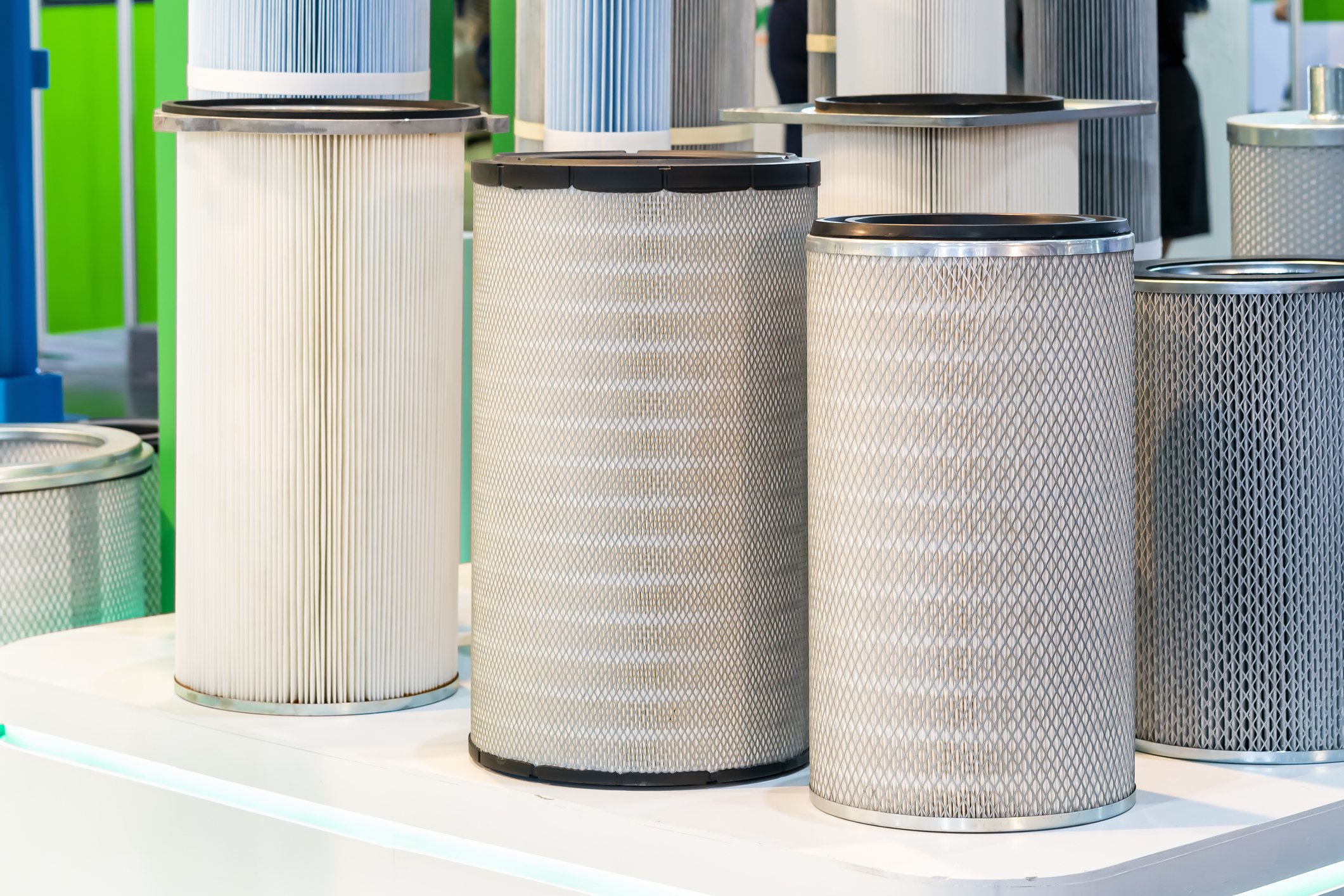

Industrial Dust Collection
